GAST MANUFACTURING CORPORATION

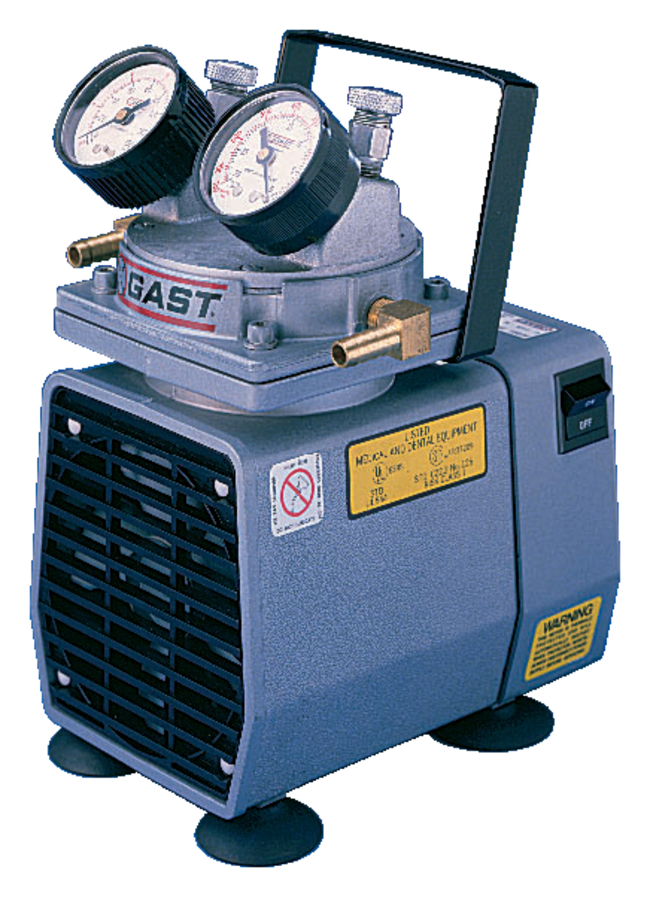

Oil-Less Diaphragm-Type Pressure/Vacuum Pump

Pressure/vacuum pumps with 1/8hp motor for medium pressure and solid vacuum applications

Catalog Number	Flow Rate
0109229	31.2 L/min.

Catalog number 0109229

Price (USD)

Flow Rate:

31.2 L/min.

Pressure/vacuum pumps with 1/8hp motor for medium pressure and solid vacuum applications

Includes vacuum and pressure regulators.

Produce maximum gauge pressure of 60psig (413kPag)
Vacuum to 26 in. of mercury
Separate vacuum and pressure gauges, graduated from 0 to 60psig (5psig increments) and 0 to 25 in.Hg (1/2 in.Hg increments)
ON/OFF switch on pump body
Aluminum housing with rubber feet and handle
Hose connection diameters, 3/8 in. O.D. × 1/4 in. I.D. (9.5 × 6.4mm)

Specifications

Max. Vacuum26 in. of mercury

Horsepower0.125 hp

Motor TypeShaded pole

Amperage4.2 A

IncludesPower cord

Motor Speed1575 rpm

Certifications/ComplianceUL, cUL

Electrical Requirements115 V 60 Hz

Weight (English)16 lb.

Weight (Metric)7.3 kg

Temperature (English) Max.100°F

Temperature (Metric) Max38°C

Flow Rate31.2 L/min.

Overall Length (English)7.75 in.

Maximum Pressure4.2 bar

Unit SizeEA
