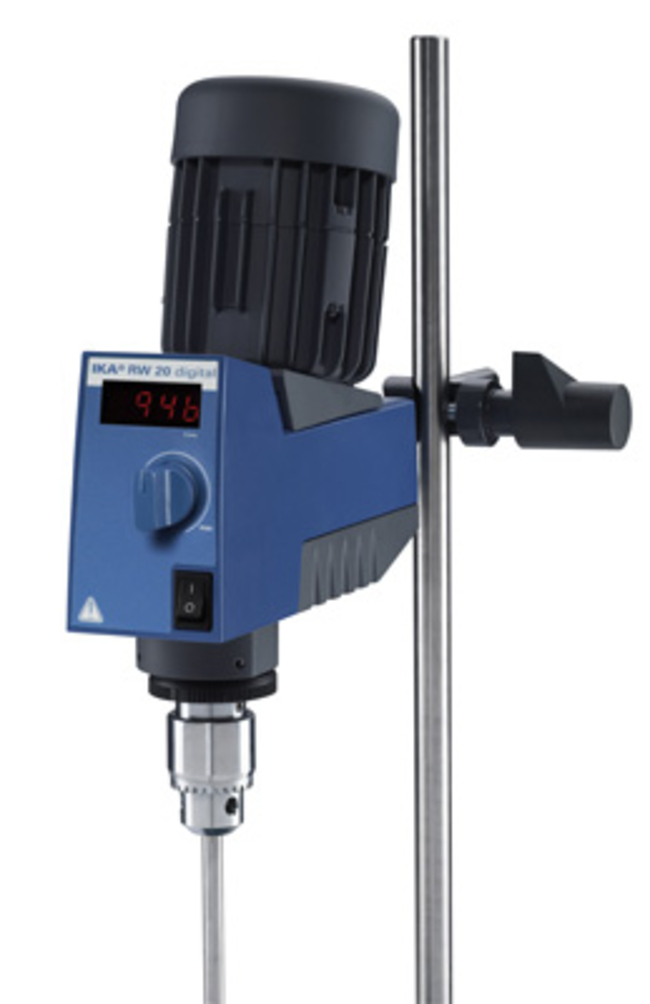

RW 20 Digital Stirrer
Actual product may vary
IKA WORKS

RW 20 Digital Stirrer

Stirs quantities up to 20 L (H2O) RW 20 Digital Stirrer includes a robust, slimline, ergonomic design. Includes two speed ranges for universal use from 60 to 2000 rpm.
Have Questions?
Catalog NumberModel
01183183RW 20
Catalog number 01183183
Price (USD)
-
Model:
RW 20

Stirs quantities up to 20 L (H2O)

  • Digital display
  • Robust, slimline, ergonomic design
  • Technical improvements on the trusted RW 20 series designs
  • With constant power-drive
  • Two speed ranges for universal use from 60 to 2.000 rpm
  • Push-through agitator shafts (only when stationary)
Specifications
Speed72 to 600 rpm (Speed Range I), 288 to 2400 rpm (Speed Range II)
Capacity20 L
DisplayLED
Voltage100/115 V
Wattage87 W
Depth (Metric) Interior212 mm
Diameter (Metric) Shaft10.5 mm
Dimensions (L x W x H)212 x 88 x 294 mm (8.3 x 3.5 x 11.6 in.)
Height (English)11.6 in.
Height (Metric)294 mm
Length (English)8.3 in.
Length (Metric)212 mm
Top Plate Diameter (Metric)13 mm
Width (English)3.5 in.
Width (Metric)88 mm
Frequency50/60 Hz
Certifications/ComplianceDIN EN 60529
Chuck Size0.5 to 10 mm
ModelRW 20
Protection ClassIP20
Temperature Range (Metric)5°C to 40°C
Torque1.5 Nm
TypeOverhead Stirrer
Viscosity10,000 mPas
Weight (Metric)3.1 kg
Unit SizeEA
