Ranger™ 3000 Compact Bench Scales
Actual product may vary
OHAUS SCALE CORPORATION

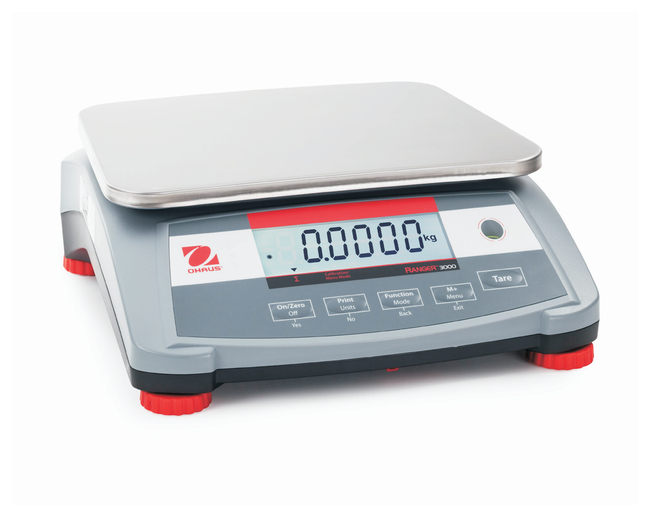

Ranger™ 3000 Compact Bench Scales

Eliminate wait time with rapid stabilization. The Ranger 3000™ Compact Bench Scale is tough, dependable, fast and precise.
Have Questions?
Catalog NumberCapacityModelReadability
0211222113.6 kgR31P150.5 g
Catalog number 02112221
Price (USD)
-
Capacity:
13.6 kg
Model:
R31P15
Readability:
0.5 g

Features Include

  • Large, bright display: 38.1mm LCD display
  • User Friendly: SmarText™ menu navigation
  • Weigh below capability: functionality to perform specific gravity tests and weigh items that cannot be easily lifted on to the weighing pan
  • Standard connectivity with flexible options: included RS232 with optional Ethernet, second RS232 and USB offers additional data transfer capabilities or allows connection to multiple peripherals
  • ABS housing, stainless steel platform
  • Weighing units: kg, g, lb, oz, lb:oz
  • Three LED (yellow, green, red) with configurable operation and alert beeper
  • Weigh-below hook
  • Integral transportation handle
  • Sealed front panel
  • Menu lockswitch
  • Up front level indicator
  • Adjustable leveling feet
  • Selectable environmental and auto-print settings
  • Rapid stabilization eliminates wait time
  • Stability
  • Overload and underload indicators
  • Low battery indicator
  • Auto shut-off
  • Auto tare



Applications
Weighing, Percent weighing, Parts counting, Check weighing/percent/counting, Accumulation, Dynamic weighing

Specifications
Automation Interface5 Mechanical keys
Battery Life210 Hr.
Battery TypeInternal rechargeable lead acid battery
CalibrationExternal, with user selectable calibration weight value
Certifications/ComplianceISO 9001:2008, NIST Handbook 44 (NTEP CC 13-022), (AM-5907C), OIML R76-1 (R76/2006-NL1-12.46), (Class 3, nmax 3000), CSA C22.2 61010-1, UL 61010-1, FCC Part 15 Class A, IEC 61326-1
Connection TypeRS232
Capacity13.6 kg
Display TypeLCD
Readability0.5 g
FormatGram, kilogram, ounce, pound
IncludesWeigh-below hook, integral transportation handle, menu lock switch, adjustable leveling feet, 3 LED (yellow, green, red) check weighing lights, AC power
MaterialABS Plastic, Stainless Steel
ModelR31P15
Stabilization Time1 sec.
Temperature Range (English)14°F to 104°F
Temperature Range (Metric)-10°C to +40°C
TypeRanger™ 3000 Compact Bench Scale
Dimensions (L x W x H)12.9 x 12.2 x 4.6 in. (32.7 x 31.1 x 11.7 cm)
Length (English)12.9 in.
Length (English) Pan8.9 in.
Length (Metric)32.7 cm
Length (Metric) Pan22.5 cm
Width (English)12.2 in.
Width (English) Pan11.8 in.
Width (Metric)31.1 cm
Width (Metric) Pan30 cm
Height (English)4.6 in.
Height (Metric)11.7 cm
Weight (English)9.2 lb.
Weight (Metric)4.2 kg
Electrical Requirements100/240 V 50/60 Hz
Voltage100/240 V
Frequency50/60 Hz
Legal for TradeClass III
Unit SizeEA
