OHAUS SCALE CORPORATION

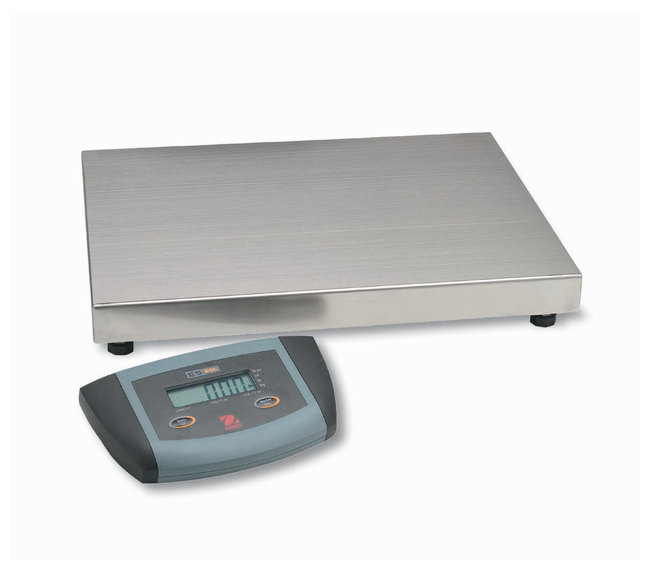

ES Series Digital Bench Scales

Portable digital scale with easy, two-button operation. Large platform easily accommodates weighing of oversized and awkwardly shaped packages.

Catalog Number	Capacity	Dimensions (L x W x H)	Readability
0211307	30 kg	31 x 27 x 4 cm	0.02 kg

Catalog number 0211307

Price (USD)

Capacity:

30 kg

Dimensions (L x W x H):

31 x 27 x 4 cm

Readability:

0.02 kg

ON/OFF/ZERO key turns scale on and automatically sets it to zero
CAL/UNITS key changes weighing unit and calibrates scale when used with an external weight (not supplied)
Separate indicator with easy-to-read 1 in. (2.5cm) LCD
Low-profile design makes balances completely portable
Unique three-way mounting bracket mounts the indicator to the scale base, above the scale platform, or on any vertical surface
Stainless-steel platforms provide excellent chemical resistance; painted steel frames
Factory set and factory calibrated, with four user-selectable weighing units: kg, lb., oz., lb.:oz.
Error indicator for over- and under-loads
Low-battery indicator; stability indicator
Auto shutoff (after five minutes of inactivity) prolongs battery life
Models 02-113-09, -10 and -11 have leveling feet
Model 02-113-11 has only kg, lb., and oz. units

Specifications

Automation Interface2 Function membrane switch

Battery Life30 Hr.

Battery Type6 AA

CalibrationSpan 100%

Certifications/ComplianceISO 9001:2008, UL, FCC, CSA, CE Safety EN60950, Emissions EN55022, Immunity EN50082-1

Capacity30 kg

Display TypeLCD

Readability0.02 kg

FormatKilogram, ounce, pound

IncludesAC wall adapter, three-way mounting bracket, painted Steel frame

MaterialABS Plastic, Stainless Steel

ModelES30R

Stabilization Time<3 sec.

Temperature Range (English)14°F to 104°F

Temperature Range (Metric)-10°C to +40°C

TypeES Digital Bench Scale

Dimensions (L x W x H)31 x 27 x 4 cm

Weight (English)6.6 lb.

Weight (Metric)3 kg

Electrical RequirementsFor 120 V 60 Hz

Voltage120 V

Unit SizeEA
