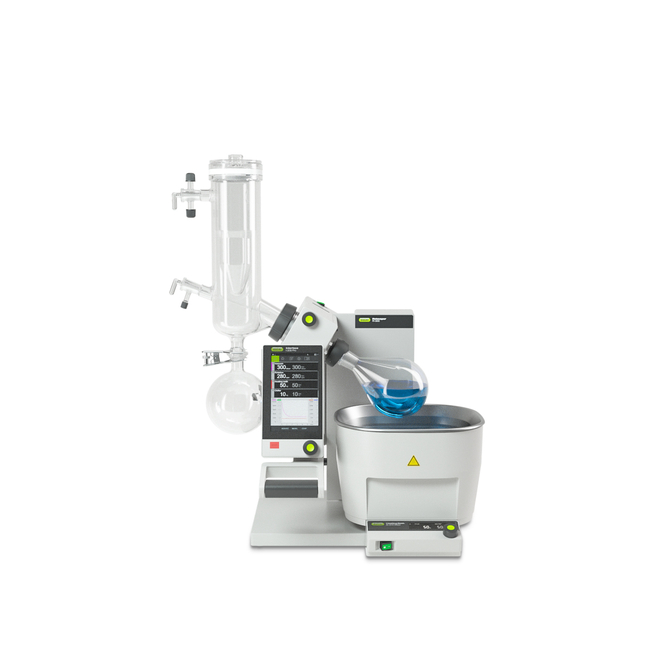

Rotavapor R-300 Rotary Evaporator with Controller
Actual product may vary
Rotavapor R-300 Rotary Evaporator with Controller
Rotavapor R-300 Rotary Evaporator with Controller
BUCHI CORPORATION

Rotavapor R-300 Rotary Evaporator with Controller

The R-300 meets the highest expectations in convenience and versatility. Its modular design allows extension of the Rotavapor R-300 to a fully integrated system where a central interface regulates each component.
Have Questions?
Catalog NumberDescriptionGlassware Assembly TypeController Type
05000464Manual LiftCold TrapI-300 Pro Interface (Woulff Bottle)
Catalog number 05000464
Price (USD)
-
Description:
Manual Lift
Glassware Assembly Type:
Cold Trap
Controller Type:
I-300 Pro Interface (Woulff Bottle)
  • Intuitive user interaction
  • Precise operation control for repeatability and safety
  • 1 L or 5 L flask capacity baths with cordless changes and cleaning
  • Up to 220 °C bath heating with 5 L bath
  • Ergonomic handle with manual or electronic lift
  • Choice of P+G coating for added protection of condenser and receiving flask
  • Unattended operation and mobile monitoring available
  • Modular system for control, vacuum, and chiller integration
  • Additional glass assemblies and configurations
  • Cloud services for optimized productivity and automated processes
Specifications
DescriptionManual Lift
Voltage100/120 V
Capacity (Metric)5 L
Speed10 to 280 rpm
Material (Coating)Safety Coating
IncludesB-305 Heating Bath
Max. Temperature (Metric)220°C
Wattage1600 W
Electrical Requirements100/120 V
Glassware Assembly TypeCold Trap
Dimensions (L x W x H)607 x 429 x 947 mm
Controller TypeI-300 Pro Interface (Woulff Bottle)
Heating Capacity (Metric)1100 W
CertificationsCE/CSA
TypeRotary Evaporator
Frequency50/60 Hz
ModelR-300
Standard Taper Joint24/40
Unit SizeEA
