BINDER

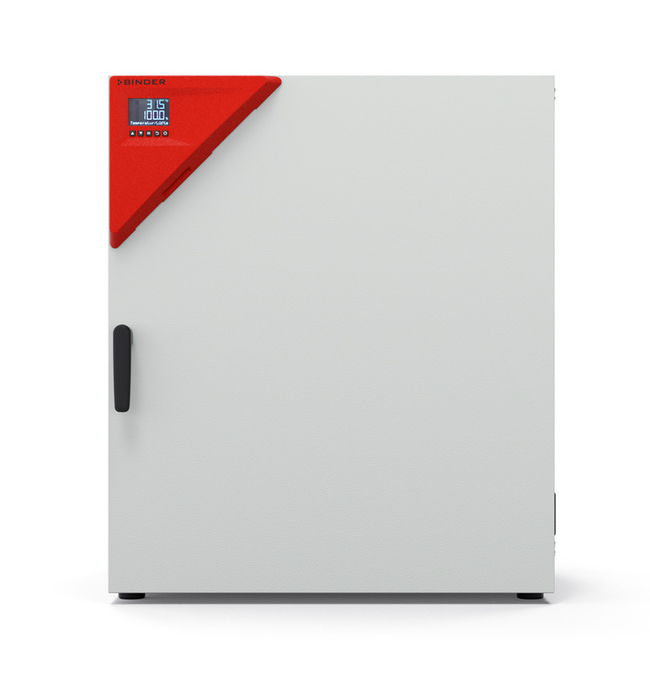

Series FP Avantgarde.Line - Drying and Heating Chambers with Forced Convection and Program Functions

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating – even for chambers under full loads.

Catalog Number	Model
08101213	FP260UL-240V

Catalog number 08101213

Price (USD)

Model:

FP260UL-240V

Temperature range: +10°C above ambient temperature up to +300°C
High temperature accuracy thanks to APT.lineTM technology
Adjustable fan speed
Controller with interval and real-time programming
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Units up to 115 liters are stackable
Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
Ergonomic handle design
Computer interface: Ethernet
Internal data logger, measured values can be read out in open format via USB

Specifications

DisplayLED

Wattage2.7 kW

Amperage16 A

Dimensions (L x W x H)810 x 786 x 962 mm

Voltage240 V

Capacity (Metric)259 L

Weight (Metric)96 kg

Temperature (Metric)Ambient +10° to 300°C

ModelFP260UL-240V

Dimensions (D x W x H) Interior512 x 650 x 780 mm

Frequency60 Hz

TypeDrying and Heating Chamber

Unit SizeEA
