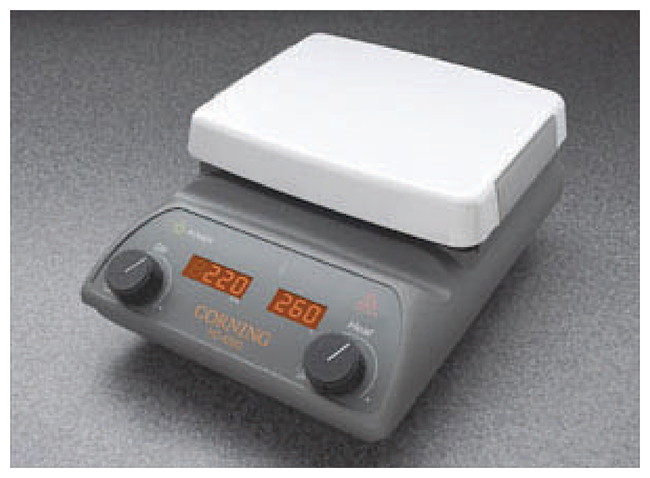

Pyroceram™ Hot Plate Stirrer, 550°C, Glass Ceramic
Actual product may vary
CORNING LIFE SCIENCES GLASS

Pyroceram™ Hot Plate Stirrer, 550°C, Glass Ceramic

Stirring Range: 60 to 1150 rpm; Shape: Square; Size: 10 x 10 in.; Plug Type: US-Style
Have Questions?
Catalog NumberVoltage
11500151120 V
Catalog number 11500151
Price (USD)
-
Voltage:
120 V

Corning digital hot plates, stirrers, and stirring hot plates are made with the same durability and quality Corning has been putting into Pyroceram™ top products since 1964. All models include a Pyroceram top and a two-year warranty.

  • Twin display stirring hot plate shows both temperature and stirring speed on separate digital displays to ensure accuracy. Accuracy within ±2°C and stirring speeds at ±5% of the speed setting you choose
  • Digital displays indicate when set temperature and stirring speeds are reached
  • Safety indicators – power button and hot top indicators warn if unit is plugged in or is too hot to touch
  • Angled front panel and large knobs minimize damage from spills
  • PC-400D/410D/420D top plate size: 5 x 7 in. (12.7 x 17.8 cm)
  • PC-600D/610D/620D top plate size: 10 x 10 in. (25.4 x 25.4 cm)
Specifications
IncludesNot Applicable
Safety FeaturesBright LED hot top icon lights up when top plate is over 60°C, even when heat control is turned off, two piece casting design deflects spills away from electronics and includes a built in mount for an optional 18 in. support rod
Electrical Requirements120 V 60 Hz
Shipping Weight (Metric)6.48 kg
Plug TypeUS
Width (Metric)26.9 cm
Sole FeaturesExclusive closed loop stirring control monitors and regulates the stirring speed from 60 to 1150rpm for aqueous, viscous or semi solid solutions
Weight (English)11.46 lb.
Voltage120 V
ShapeSquare
Amperage9.3 A
Shipping Weight (English)14.3 lb.
Width (English)10.59 in.
Wattage1113 w
Height (Metric)12.2 cm
Controller TypeMicroprocessor
Length (English)15.78 in.
Weight (Metric)5.2 kg
Top Plate MaterialGlass Ceramic
No. of Positions1
Size10 x 10 in.
TypeStirring Hotplate
Stirring Range60 to 1150 rpm
Frequency60 Hz
Height (English)4.8 in.
Ambient Temperature5°C to 550°C
Length (Metric)40.1 cm
Temperature (English)41°F to 1022°F
Temperature (Metric)Ambient to 550°C
Unit SizeCS
