WHEATON SCIENCE PRODUCTS INC

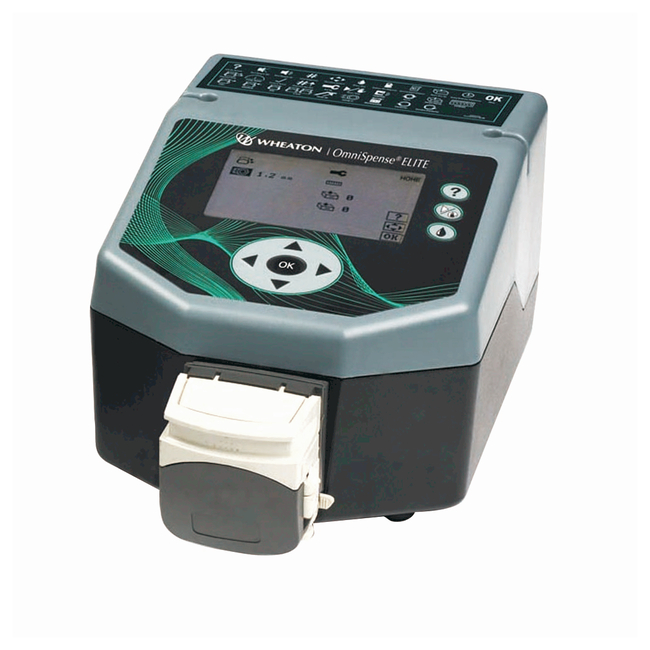

Wheaton™ OmniSpense™ ELITE Peristaltic Pump

Microprocessor-controlled dispenser designed to handle liquids

Catalog Number	Motor Speed
13687446	0.5 to 400 rpm

Catalog number 13687446

Price (USD)

Motor Speed:

0.5 to 400 rpm

Icon driven user interface allows easy setup and operation
Large polarized, angled and backlit LCD display provides glare free viewing
Chemical and wear-resistant front overlay
Trouble-free calibration screen
Ultra high precision stepper motor ensures repeatability and accuracy
Low profile design reduces space required on bench or in hood
Nine quick-retrieval pump settings can be saved and recalled
Multiple language help screens (English, Chinese, French, Japanese, Korean and Spanish)
Multiple stacking pump heads allows for higher volumes and multiple fill applications with one pump
Microcassette head provides micro-dispensing of liquids in well plates, microtubes, or microcentrifuge tubes
Works with 1, 2, 3, 6 and 8mm tubing
Pump allows for different ramping profiles to avoid foaming or splashing

Specifications

Weight (Metric)5.4 kg

Wattage37 w

Motor TypeUltra high-precision stepper

Flow Rate20.4 to 1746 mL/min. dependant on tubing size

External ControlMicroprocessor

Display TypeLCD

Motor Speed0.5 to 400 rpm

Certifications/ComplianceUL, CSA, CE, WEEE, RoHs

Electrical Requirements100/240 V 50/60 Hz

Weight (English)11.8 lb.

Unit SizeEA
