BRAND TECH SCIENTIFIC INC

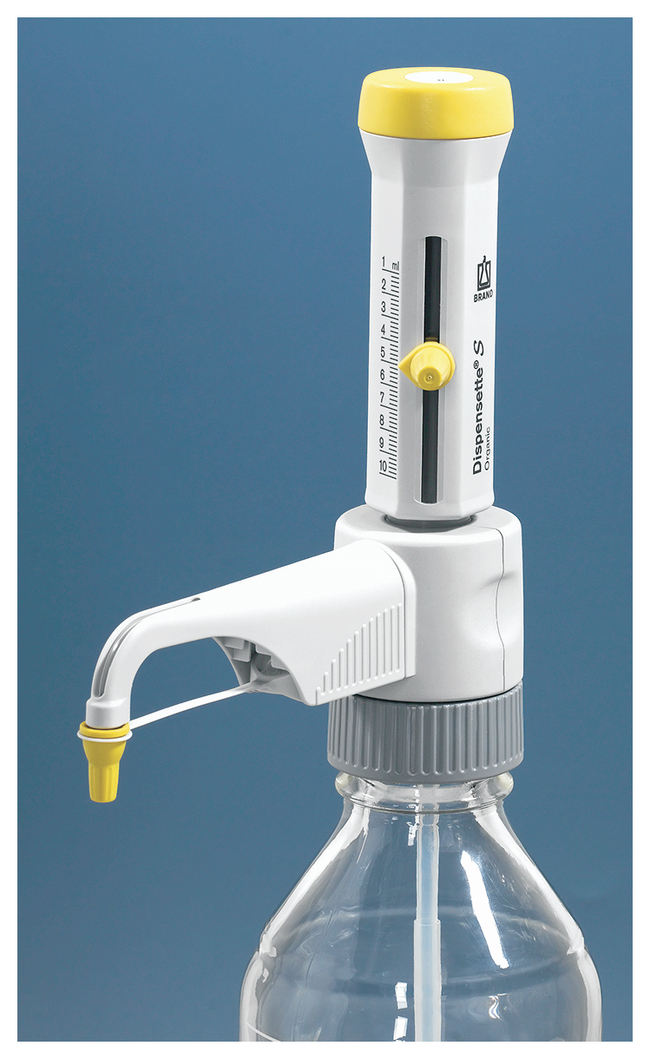

Dispensette™ S Organic Analog-adjustable Bottletop Dispensers
The Dispensette™ S Organic Analog Bottletop Dispensers feature a 'floating piston' design for low-force operation and no wearing parts. Optimized flow channels make dispensing and priming even easier-particularly in instruments with large volumes.
| Catalog Number | Volume (Metric) | Increments | Accuracy | Includes |
|---|---|---|---|---|
| 13689046 | 10 to 100 mL | 1.0 mL | 0.5% (500μL) | Dispensette S bottle-top dispenser,a GL 45 threaded bottle adapter, DE-M marking, performance certificate, telescoping filling tube, recirculation valve with an optional recirculation tube, a mounting tool, and polypropylene adapters (GL 32-33, GL38, S40) |
Catalog number 13689046
Price (USD)
-
Volume (Metric):
10 to 100 mL
Increments:
1.0 mL
Accuracy:
0.5% (500μL)
Includes:
Dispensette S bottle-top dispenser,a GL 45 threaded bottle adapter, DE-M marking, performance certificate, telescoping filling tube, recirculation valve with an optional recirculation tube, a mounting tool, and polypropylene adapters (GL 32-33, GL38, S40)
- New discharge tube, with or without recirculation valve
- New valve system - no additional sealing rings required, facilitates cleaning and preparations for autoclaving
- Simple priming by optimized flow channels
- Less dispensing force - especially with large volume instruments
- Safe volume setting with internal scalloped track (analog-adjustable instruments)
- Pivoted screw cap - does not disturb dispensing
- Easy to calibrate and adjust in order to comply with GLP guidelines
- Easy to dismantle for cleaning
- Replaceable filling and discharge valve with safety bulb (locks when discharge tube is not assembled)
- 360° rotatable valve block allows bottle label to face user
- Telescoping filling tube adjusts easily to different size bottles
- DE-M marking
Specifications
Accuracy0.5% (500μL)
Product TypeBottletop Dispenser
Angle90°
AutoclavableAutoclavable
Certifications/ComplianceISO 9001
ColorGray/Yellow
DensityUp to 2.2 g/cm3
DescriptionWith recirculation valve
Channels1
MaterialBorosilicate Glass, Ceramic, ETFE, PFA, PTFE
Volume (Metric)10 to 100 mL
DisplayAnalog
For Use With (Application)Dispensing organic solvents, including chlorinated and fluorinated hydrocarbons (e.g., trichlorofluoroethane and dichlormethane), acids like concentrated HCl and HNO3 (except HF), trifluoroacetic acid (TFA), tetrahydrofuran (THF) and peroxides
IncludesDispensette S bottle-top dispenser,a GL 45 threaded bottle adapter, DE-M marking, performance certificate, telescoping filling tube, recirculation valve with an optional recirculation tube, a mounting tool, and polypropylene adapters (GL 32-33, GL38, S40)
Increments1.0 mL
Precision0.1% (100μL)
Temperature (English)59°F to 104°F
Temperature (Metric)15°C to 40°C
Vapor PressureUp to 600 mbar
Viscosity RatingUp to 500 mm 2/s
Warranty2 Year
Unit SizeEA
