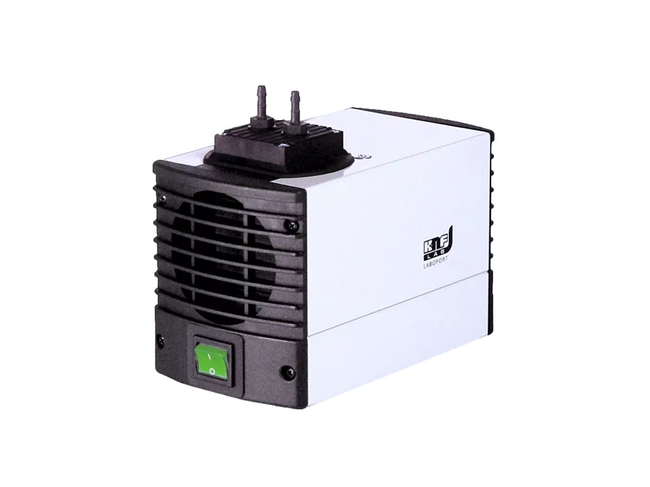

Mini LABOPORT™ UN86KTP Diaphragm Vacuum Pump
Actual product may vary
KNF NEUBERGER INC

Mini LABOPORT™ UN86KTP Diaphragm Vacuum Pump

UN86 diaphragm pumps are single head, dry running devices used in a wide range of laboratory applications. They transfer, compress and pump down without contamination. The heart of these very compact pumps is a KNF structured diaphragm.
Have Questions?
Catalog NumberModel
1387838UN86KTP
Catalog number 1387838
Price (USD)
-
Model:
UN86KTP

No metal or coated-metal parts within the Ryton™ pump heads; prevents pitting and corroding. Structured PTFE diaphragms supply consistent, reliable vacuum levels; not dependent on water pressure or temperature. Kalrez™ valves exhibit high tolerance to occasional liquid condensate, so a trap is not required except in those applications where large volumes of liquid are anticipated.

  • 120 Torr Ultimate Vacuum
  • 5.5 L/min. Flow Rate
  • Oil-free
  • Low maintenance
  • Small footprint; requires little bench space
  • Available as stand alone or with vacuum gauge/regulator assembly
  • For bottle top filtration and disposable filtration flasks <500 mL
Specifications
Max. Vacuum120 torr
Electrical Requirements115 V 60 Hz
ModelUN86KTP
Flow Rate5.5 L/min.
Frequency60 Hz
Pump TypeDiaphragm Vacuum Pump
Enclosure RatingIP20
ApplicationsAspiration
Maximum Pressure36 psi
Voltage115 V
Unit SizeEA
