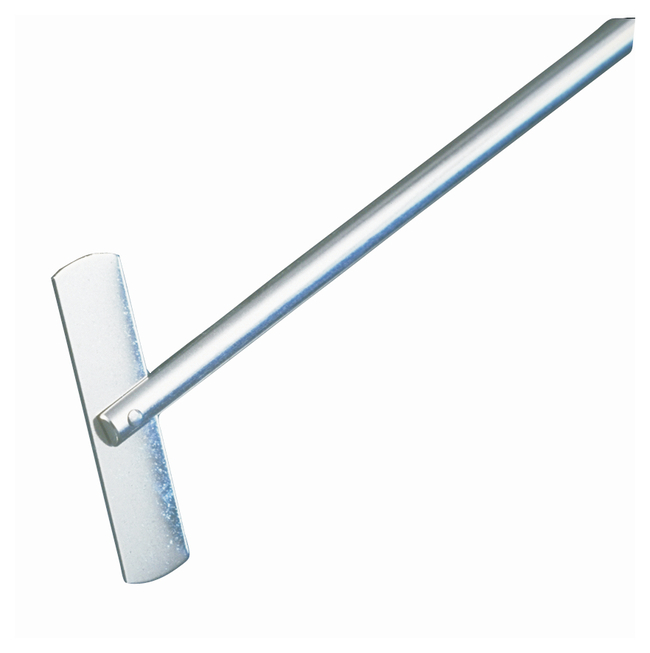

Overhead Stirrer Impellers - Blade and Half-Moon Styles
Actual product may vary
Overhead Stirrer Impellers - Blade and Half-Moon Styles
Overhead Stirrer Impellers - Blade and Half-Moon Styles
HEIDOLPH NORTH AMERICA

Overhead Stirrer Impellers - Blade and Half-Moon Styles

Hei-TORQUE Blade and Half-Moon Style Impellers are recommended for applications which require an average speed and little or average viscosity.
Have Questions?
Catalog NumberTypeSpeed
13889459BR 10 Crossed Blade2000 rpm
Catalog number 13889459
Price (USD)
-
Type:
BR 10 Crossed Blade
Speed:
2000 rpm

Precise working with an overhead stirrer depends on the right choice of the stirrer tool. When choosing a stirrer tool, consider the flow which the tool causes in the medium, the tool's adequate field of application depending on the speed range, and the execution of the tool according to viscosity it is destined for.

Blade and Half-Moon Impeller

  • These impellers are recommended for applications which require average speed
  • For mixing tasks with little or average viscosity
  • Models BR 12, BR 14 and HR 18 come with collapsible blade for narrow neck vessels

Specifications
Diameter (English) Fan2.6 in.
Diameter (English) Shaft0.31 in.
Diameter (Metric) Fan6.6 cm
Diameter (Metric) Shaft0.8 cm
For Use With (Equipment)Hei-TORQUE Core, Hei-TORQUE Expert, Hei-TORQUE Ultimate
For Use With (Application)Mixing Tasks with Little or Average Viscosity
Height (English)0.47 in.
Height (Metric)1.2 cm
Length (English)15.74 in.
Length (Metric)400 mm
Speed2000 rpm
TypeBR 10 Crossed Blade
Width (English)2 in.
Width (Metric)5 cm
Weight (Metric)48 oz.
Weight (English)3 lb.
Unit SizeEA
