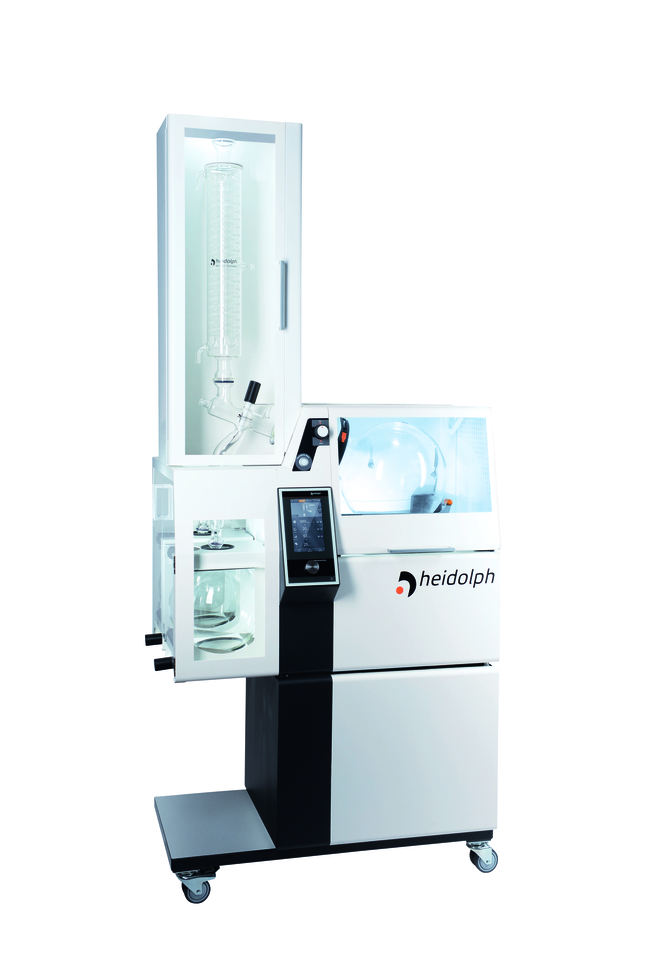

Hei-VAP Industrial Rotary Evaporator

Hei-VAP Industrial Rotary Evaporator is perfectly designed for a great deal of different distilling processes, from standard evaporation without vacuum control up to complex distillation processes with vacuum control.

Catalog Number	Model
13890102	Glassware RC

Catalog number 13890102

Price (USD)

Model:

Glassware RC

Excellent user safety with high-impact transparent PMMA door Non-fogging safety glass and metal frame guard hood provides excellent user protection

The evaporation flask is illuminated during operation for increased visibility

Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C

Receiver cassettes and additional PMMA door housing protect against threat of glassware breakage

Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom

Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories

Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ)

Large touch screen control panel with illuminated displays for all process parameters, programmable ramps

Specifications

Voltage230 V

Speed6 to 160 rpm

Temperature Range (Metric)20°C to 180°C

For Use With (Application)Recommended for All Standard Distillations

IncludesRC Glassware: one ascending condenser, one 20 L evaporating flask, two 10 L receiving flask

CertificationsNRTL

TypeMotor Lift Rotary Evaporator

ModelGlassware RC

Unit SizeEA
