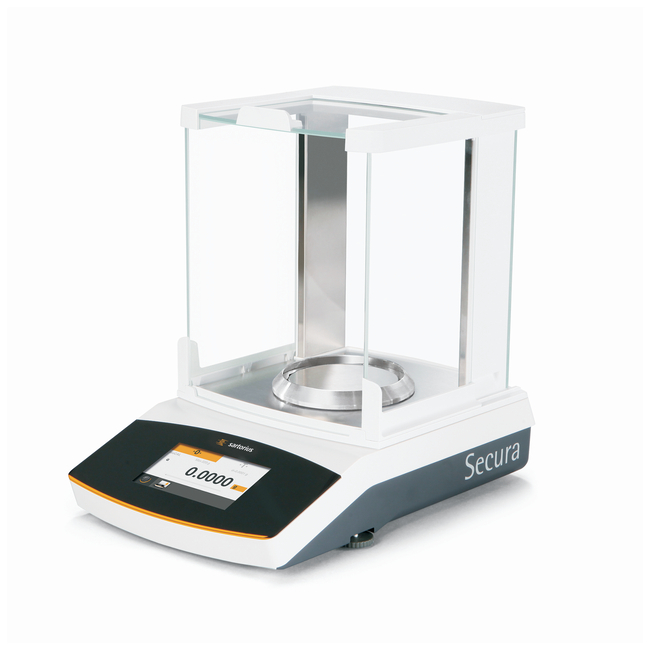

Secura™ Analytical Weighing Balances
Actual product may vary
Secura™ Analytical Weighing Balances
Secura™ Analytical Weighing Balances
SARTORIUS CORPORATION

Secura™ Analytical Weighing Balances

Easy, reliable weighing in regulated work areas
Have Questions?
Catalog NumberCapacityReadabilityModelStabilization Time
14557401220 g0.1 mg2242 sec.
Catalog number 14557401
Price (USD)
-
Capacity:
220 g
Readability:
0.1 mg
Model:
224
Stabilization Time:
2 sec.
Easy, reliable weighing in regulated work areas

Designed for customers who work in regulated environments and need high quality results without any risk. Secura ensures the quality of the measurement results, compliance with regulatory requirements and work flow efficiency improvement.

  • Weigh without risk: Data transfer to a printer or a computer is blocked when most common operating errors occur
  • Features Level Control - an optoelectronic level monitoring, alarm messaging and interactive user support feature
  • Programmed SQmin in the balance allows active monitoring of the USP minimum sample weight requirement
  • IsoCAL™ provides internal fully automatic, motorized calibration and adjustment function with configurable action level
  • Cal Audit Trail provides traceable documentation of all calibration and adjustment data inside the balance
  • GLP-compliant printouts with proper time and date stamps, with Sartorius GLP printer YDP30
  • Password protection prohibits unauthorized changes of weighing settings
  • Innovative housing design allows easy cleaning for thorough results
  • Optimized draft ring and level control for working in laminar air flow environments
Specifications:
  • Calibration: isoCAL internal automatic calibration; also offers external
  • Safety level: Configurable in three levels
  • Weighing units: g, ct, mom, kg, lb, oz, ozt, tlh, tls, tlt, GN, dwt, mg, parts/lb, tlc, Kt, tol, bat, MS, N
  • Stability indicator: Yes
  • Housing protection: Acetone cleanable housing
  • Verified models: Yes
  • Language selection: English, French, Spanish
  • Theft lock: Kensington lock and lockdown capability for cable or chain
  • Output: Mini-USB
  • Power: 100-240V (universal)

Standard applications: weighing; density; percentage; checking, peak hold, counting; unstable conditions. Special lab applications include mixing, components, statistics, and conversion.

Specifications
Automation InterfaceTouchscreen
Calibration Points200 g
Certifications/Compliance2009/23/EC, EN 45501:1992, OIML
Connection TypeMini USB
Capacity220 g
Display TypeColor Touchscreen
Readability0.1 mg
IncludesManual draft shield, Universal power adapter, in-u
LevelingOptoelectronic leveling sensor with alarm function
Linearity<±0.2 mg
MaterialABS Plastic, Aluminum Die-cast
Model224
Repeatability<±0.1 mg
Sensitivity Drift±1.5 ppm/°C
Stabilization Time2 sec.
Temperature Range (English)50°F to 86°F
Temperature Range (Metric)10°C to 30°C
TypeAnalytical Balance
Warranty2 Years
Width (English)8.5 in.
Width (Metric)21.6 cm
Width (Metric) Pan9 cm
Height (English)12.6 in.
Height (English) Chamber8.22 in.
Height (Metric)32 cm
Height (Metric) Chamber20.9 cm
Depth (English)14.1 in.
Depth (Metric)36 cm
Weight (English)11.24 lb.
Weight (Metric)5.1 kg
Electrical Requirements100/240 V 50/60 Hz
Voltage100/240 V
Wattage2 w
Amperage0.2 A
Frequency50/60 Hz
Legal for TradeClass I
Unit SizeEA
