Square Blade Impeller
Actual product may vary
CAFRAMO LTD

Square Blade Impeller

Stainless steel Square Blade Impeller with shaft for use with Caframo™ and Fisherbrand™ Overhead Stirrers. Available in multiple sizes.
Have Questions?
Catalog NumberDimensions (L x W x H)
14638267400 x 38 x 38 mm
Catalog number 14638267
Price (USD)
-
Dimensions (L x W x H):
400 x 38 x 38 mm
Stainless steel Square Blade Impeller with shaft for use with Caframo™ and Fisherbrand™ Overhead Stirrers. Available in multiple sizes.
  • 316L stainless steel blade and shaft
  • For small volumes of viscous product
  • Applications: Low speed, High viscosity mixing, Tangential flow pattern
Specifications
Diameter (English) Shaft0.3125 in.
Diameter (Metric) Shaft8 mm
Height (English) Blade1.5 in.
For Use With (Equipment)Caframo Overhead Stirrer
For Use With (Application)Low Speed, High Viscosity Mixing, Tangential Flow Pattern
Height (Metric) Blade38 mm
Length (English)16 in.
Length (Metric)400 mm
ModelA250
ShapeSquare
TypeSquare Blade Impeller
Width (English)1.5 in.
Width (Metric)38 mm
Weight (Metric)159 g

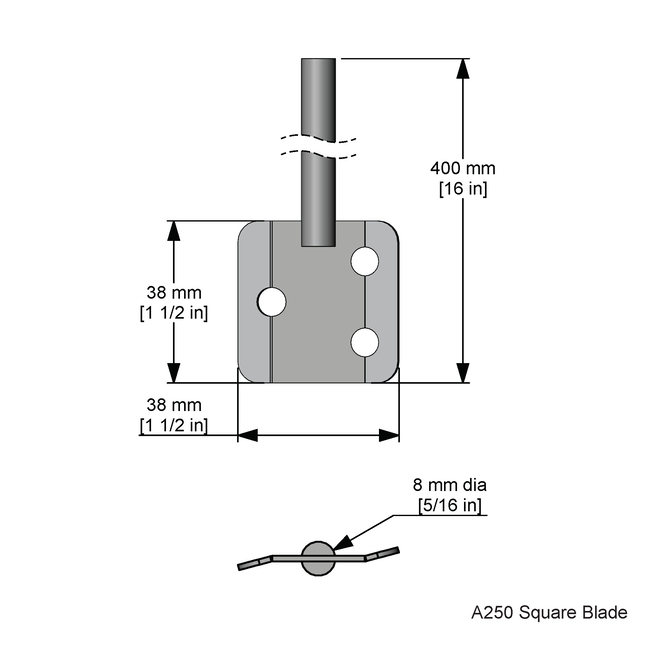

Dimensions (L x W x H)400 x 38 x 38 mm
MaterialStainless Steel (316L)
Weight (English)0.3 lb.
Unit SizeEA
