Basic™ 70 Laboratory Hood

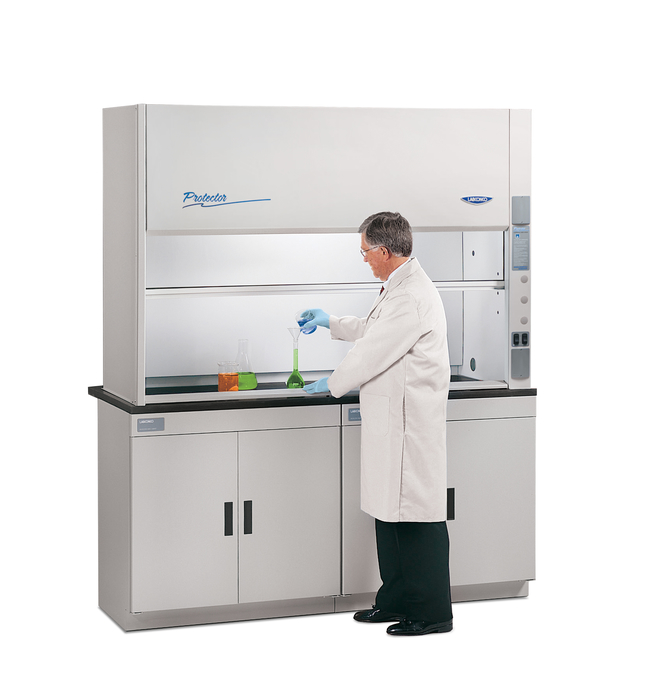

Actual product may vary
LABCONCO CORPORATION

Basic™ 70 Laboratory Hood

Designed for laboratories, classrooms and light duty applications where safe ventilation is required. Constructed of powder-coated steel, Basic Hoods are economical and have a smaller overall height and depth than traditional hoods so they fit in areas with low ceilings or narrow aisles.
Have Questions?
Catalog NumberIncludesVoltageConfiguration Options
160804No Blower100/115 VFully Assembled
Catalog number 160804
Price (USD)
-
Includes:
No Blower
Voltage:
100/115 V
Configuration Options:
Fully Assembled
For areas with low ceilings or narrow aisles, choose the Basic™ Laboratory Hood when outfitting your lab.
  • By-pass airflow design
  • Durable epoxy-coated 16 gauge steel exterior and interior resists chemical exposure
  • LED lighting
  • Vertical-rising tempered safety glass sash
  • Adjustable two-piece baffle
  • Curved air foil
  • Right side fixture panel factory-prepared to accept up to three service fixtures, one electrical duplex and one airflow monitor (kits sold separately)
  • Right interior wall factory-prepared for one cupsink and turret (cupsink and turret kit sold separately)
  • Epoxy-coated steel 10.31 in. OD exhaust connection
Applications: Laboratories, classrooms and light duty applications where safe ventilation is required
Specifications
Product TypeBenchtop Fume Hood
CoatingPowder
Lighting TypeVapor-proof LED
MaterialEpoxy-coated Steel
Amperage1 A
Certifications/ComplianceANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CE, NFPA 45, SEFA 1, UL
ColorGlacier White
Configuration OptionsFully Assembled
Depth (English)25 in.
Depth (Metric)63.5 cm
DescriptionRemote blower required
Dimensions (L x W x H)70 x 25 x 48 in.
Flow Rate1120 cfm
For Use With (Application)Laboratories, classrooms and light duty applications where safe ventilation is required.
Height (English)48 in.
Height (Metric)121.9 cm
Hertz50/60 Hz
IncludesNo Blower
ModelBasic 70
Required AccessoriesRemote blower (some models), ductwork, base cabinets, adjustable-height base stands, solid epoxy flat work surfaces.
Voltage100/115 V
Weight (English)430 lb.
Weight (Metric)230 kg
Width (English)70 in.
Width (Metric)177.8 cm
Unit SizeEA
