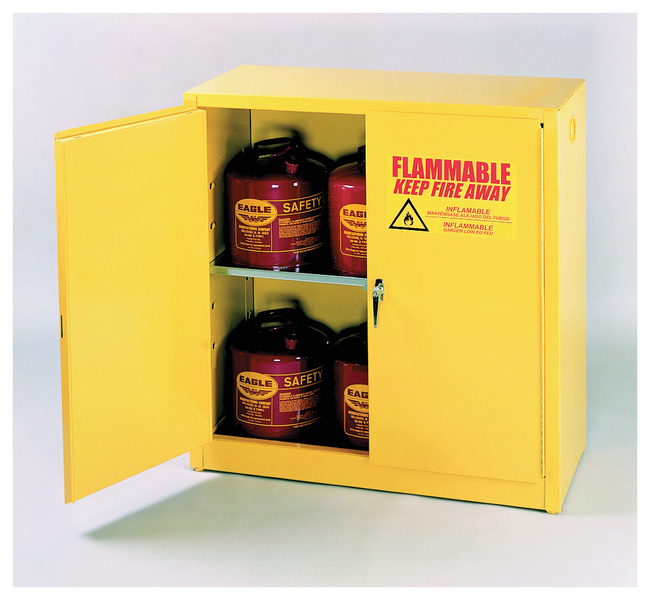

Flammable Liquid Safety Storage Cabinet
Actual product may vary
EAGLE MANUFACTURING

Flammable Liquid Safety Storage Cabinet

Save time and money by keeping normally dangerous items on hand. With Eagle's Flammable Liquid Safety Storage Cabinet, you can safely keep flammable liquids near work areas.
Have Questions?
Change viewbuttonViewtableView
Catalog NumberLoad Bearing CapacityCertifications/ComplianceNo. of DoorsNo. of Shelves
17156D45 gal.FM, NFPA, OSHA22
17156B30 gal.FM, NFPA, OSHA21
Catalog number 17156D
Price (USD)
-
Load Bearing Capacity:
45 gal.
Certifications/Compliance:
FM, NFPA, OSHA
No. of Doors:
2
No. of Shelves:
2

Save time and money by keeping normally dangerous items on hand. With Eagle's Flammable Liquid Safety Storage Cabinet, you can safely keep flammable liquids near work areas.

  • Top and bottom vents, with baffle and cap, fitted with 2 in. (5cm) pipe thread on sidewalls for outside venting
  • Double walls of 18-gauge steel provide 1.5 in. (3.8cm) air space
  • 2 in. (5cm) raised sill contains spills
  • Three-point key lock, 2 keys
  • Manually operated doors
  • Four adjustable leveling feet
  • Adjustable galvanized steel shelves supported by four brackets hold over 500 lb. (227kg) each Labeled FLAMMABLE—KEEP FIRE AWAY

Door Choices

  • Available with one or two hinged doors or with bifold door, hinged left, with piano hinge in the middle (2, 4, 12, and 16 gal. units have one door)
Specifications
Weight (English)302 lb.
For Use With (Application)Flammables
Depth (English) Interior15 in.
Width (Metric) Exterior109 cm
ColorYellow
Height (English) Interior41 in.
Width (English) Interior40 in.
Dimensions (D x W x H)18 x 43 x 65 in.
No. of Shelves2
Door StyleManual-close
MaterialSteel
Depth (Metric) Interior38 cm
IncludesGrounding attachments (top and bottom vents, with baffle and cap, fitted with 2 in. pipe thread on sidewalls), three-point key lock on doors, 5cm raised, leakproof door sill contains spills and four leveling feet, flammable-keep fire away label, 2 keys
Depth (Metric) Exterior46 cm
Product TypeFlammables Storage Cabinet (Floor Model)
Load Bearing Capacity45 gal.
Height (English) Exterior65 in.
Width (English) Exterior43 in.
Weight (Metric)136.9 kg
Certifications/ComplianceFM, NFPA, OSHA
Height (Metric) Exterior165.1 cm
Width (Metric) Interior101.6 cm
Height (Metric) Interior104.14 cm
No. of Doors2
Depth (English) Exterior18 in.
Dimensions (D x W x H) Interior15 x 40 x 41 in.
Unit SizeEA
