Sure-Grip™ EX Double-Duty Horizontal Safety Cabinet
Actual product may vary
JUSTRITE MANUFACTURING COMPANY

Sure-Grip™ EX Double-Duty Horizontal Safety Cabinet

Conveniently combines drum and container storage in one cabinet
Have Questions?
Catalog NumberColor
19121873Yellow
Catalog number 19121873
Price (USD)
-
Color:
Yellow

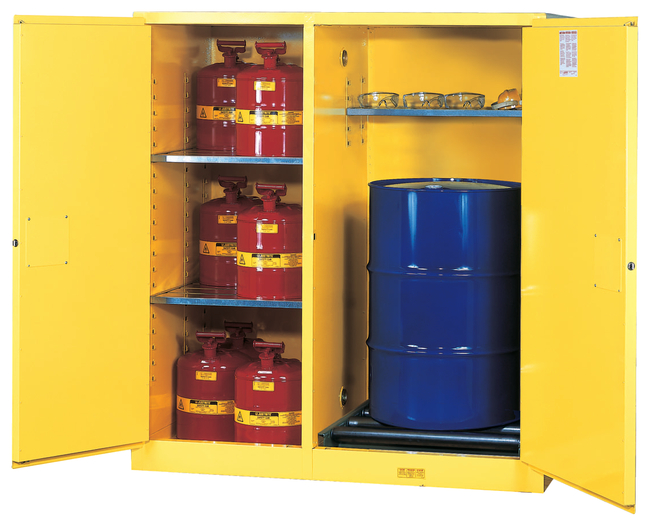

Fire-resistant cabinet constructed of sturdy 18 gauge double-wall steel with 1.5 in. (3.8cm) of insulating air space offers safe, versatile dual-storage capacity for small and large flammable liquid containers up to a total of 115 gal.†.

  • Drum-storage compartment accommodates one vertical 30- or 55-gallon drum; one half-depth adjustable shelf enables access to pumps and funnels and provides additional storage capacity
  • Container-storage compartment holds up to twelve 5-gallon safety cans and has two full-depth SpillSlope™ adjustable shelves that direct incidental spills to the back and bottom of the leakproof sump
  • Both compartments have independent self-latching with mandatory three-point latching system that engages automatically when the door is pushed closed
  • Four vents with flame arresters strategically located at bottom left and top right of outside side panels, along with two vents on inside partition to provide ventilation
  • Highly visible Haz-Alert™ trilingual warning label Flammable - Keep Fire Away clearly identifies contents and provides added safety during power outages or fires
  • Removable drum rollers in the sump to facilitate movement of heavy drums
  • built-in grounding connector
  • Sure-Grip U-Loc™ flush handle comes with two keys or accepts padlock (not included) for extra security
  • Finished inside and out with a durable lead-free hybrid epoxy and polyester powder paint for chemical resistance
Specifications
Certifications/ComplianceNFPA, OSHA
Depth (English) Interior30.34 in.
Depth (Metric) Exterior86.4 cm
Depth (Metric) Interior77.06 cm
Door StyleManual-close
For Use With (Application)Flammables
Height (English) Interior60.5 in.
Height (Metric) Exterior165.1 cm
Height (Metric) Interior153.67 cm
IncludesDrum roller in the sump and one half-depth shelf in the drum compartment, two full-size adjustable shelves in the can compartment, U-Loc™ handles with two keys, Haz-Alert™ reflective trilingual exterior labeling and Gal
Load Bearing Capacity115 gal.
No. of Doors2
No. of Shelves3
Surface CoatingEpoxy, Polyester
Weight (English)672 lb.
Weight (Metric)305 kg
Width (English) InteriorDrum side: 30.62 in.
Can side: 23.25 in.
Width (Metric) Exterior149.9 cm
Width (Metric) InteriorDrum side: 77.77 cm
Can side: 59 cm
ColorYellow
Depth (English) Exterior34 in.
Height (English) Exterior65 in.
MaterialSteel (CR)
Product TypeDrum Safety Cabinet
Width (English) Exterior59 in.
Unit SizeEA
