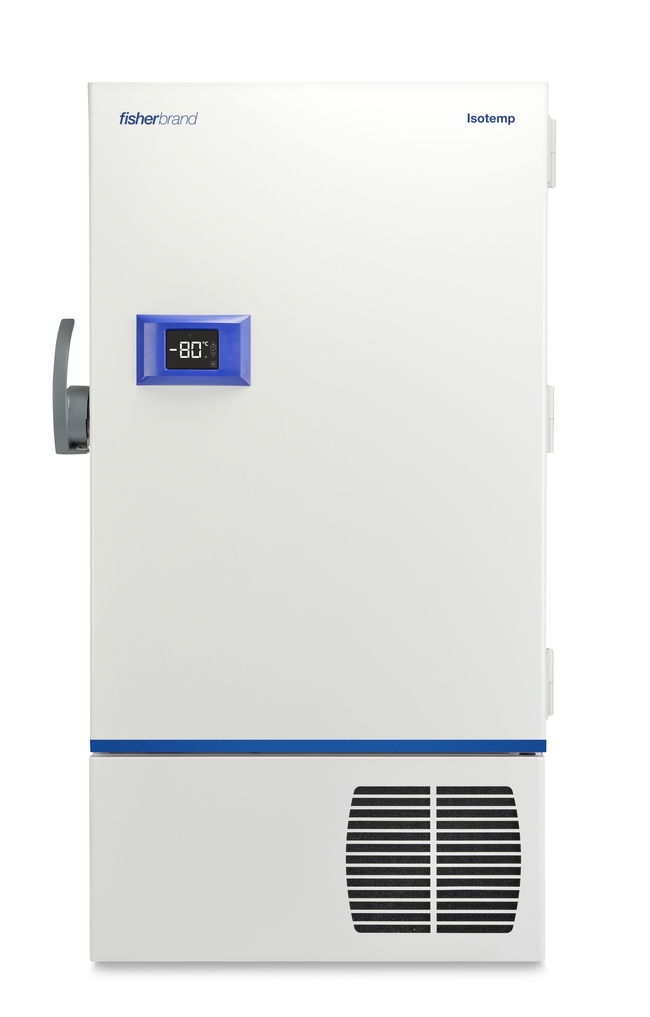

Isotemp™ Ultra Low Temperature Freezer
Actual product may vary
Isotemp

Isotemp™ Ultra Low Temperature Freezer

Fisherbrand™ Isotemp™ Ultra Low Temperature Freezer is dependable for storage applications with energy and space savings features.
Have Questions?
Catalog NumberCapacity (English)ModelVoltage
IUE50086FA24.1 cu. ft.IUE50086FA115 V
Catalog number IUE50086FA
Price (USD)
17 266,20
EA
Capacity (English):
24.1 cu. ft.
Model:
IUE50086FA
Voltage:
115 V
Price (USD)
17 266,20
EA

Description
Fisherbrand™ Isotemp -80°C ultra-low freezers are the sustainable and reliable solution with ultimate sample security and operational savings for every lab. Vacuum panel insulation provides maximum storage capacity in a smaller footprint.

Performance

  • Hydrocarbon technology saves up to 25% energy usage over conventional refrigerant ultra low freezers(1) and reduces stress on operating systems promoting outstanding reliability
  • Designed for quick recovery after door openings to maximize sample protection
  • Only 53dBA sound output enables the units to be utilized in the lab

User Friendly

  • Touch screen information center is simple and easy to use.
  • Security features include alarm settings and padlock compatible doors
  • Compatible with most racking systems

Sustainability

  • Manufactured in award winning zero-waste to landfill facility
  • Natural refrigerants and water blown foam insulation, making the Isotemp series compliant with European Union F-Gas standards

Warranty

  • US: Two years parts and labor, additional 2 years compressor parts only. Canada: 5 years parts and labor.

Footnotes: (1) Internal data comparing 11.2 kWh/day to UXF600 = 14.9 kWh/day. Data on file

Specifications
TypeUltra-Low Freezer, Upright
Capacity (English)24.1 cu. ft.
Temperature Range-50°C to -86°C
Temperature SensorRTD Probe
Temperature Stability4.1°C
Cabinet MaterialCold-rolled Steel
InsulationVacuum, Foam
InteriorPainted Steel
Exterior FinishPainted Steel
StyleUpright
DisplayCapacitive Touch
Casters4
ColorGray
Condenser TypeAir Cooled
For Use With (Application)Long term storage
Ports2
Typical Lifetime10 yrs
Warranty

US: 2 years parts and labor + additional 2 years compressor parts

CA: 5 year standard warranty

DefrostManual
Min. Clearance6 in.; doorway width clearance 34.5 in. (87.6 cm)
ModelIUE50086FA
Dimensions (DxWxH) Exterior97.7 x 86.4 x 198.1 cm (38.46 x 34.02 x 77.99 in.)
Depth (English) Exterior38.46 in.
Depth (Metric) Exterior97.7 cm
Height (English) Exterior77.99 in.
Height (Metric) Exterior198.1 cm
Width (English) Exterior34.02 in.
Width (Metric) Exterior86.4 cm
Setpoint SecurityYes
Amperage12.5 A
BreakerYes
Plug TypeNEMA 5-20
Voltage115 V
Electrical Requirements115 V 60 Hz
Frequency60 Hz
Phase1
Energy Usage10.9 Kwhr/day
RefrigerantR290 / R170+R290 Mix
Holds2 in. Boxes (500)
Unit SizeEA
