DWK LIFE SCIENCES INC

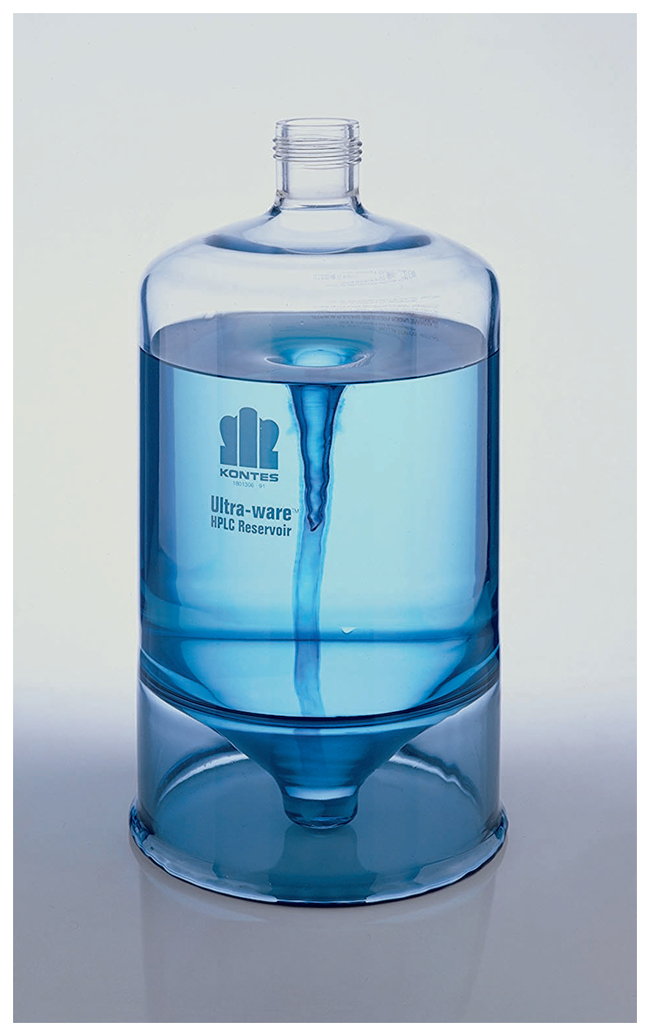

Kimble™ Kontes™ Ultra-Ware™ HPLC Reservoirs

Designed for the preparation, storage, and delivery of liquid chromatography mobile phases

Catalog Number	Capacity (Metric)	Bottom Shape
K9539015002	5000 mL	Conical

Catalog number K9539015002

Price (USD)

Capacity (Metric):

5000 mL

Bottom Shape:

Conical

Manufactured from Type I, Class A borosilicate glass with external plastic safety coating
Safety coating has UV-blocking agent that blocks light transmittance up to 385nm, preventing photodegradation of light-sensitive solvents
Screw thread: GL45-4
Maximum temperature: 120°C
Available in flat or conical bottoms; conical-bottom reservoirs deliver virtually all of the mobile phase without having to tilt reservoir and risk solvent spill

Specifications

Max. Temperature (English)248°F

Max. Temperature (Metric)120°C

Diameter (Metric) Outer205 mm

Diameter (English) Outer8.07 in.

TypeHPLC Reservoir

Height (Metric)373 mm

Capacity (Metric)5000 mL

Certifications/ComplianceUSP Type I and ASTM E438, Type I, Class A

For Use With (Application)Designed for the preparation, storage, and delivery of liquid chromatography mobile phases

MaterialBorosilicate Glass

CoatingPVC

IncludesGL45-4 screw thread

Bottom ShapeConical

Height (English)14.68 in.

Unit SizeCS
