SWIFT OPTICAL INSTRUMENTS INC

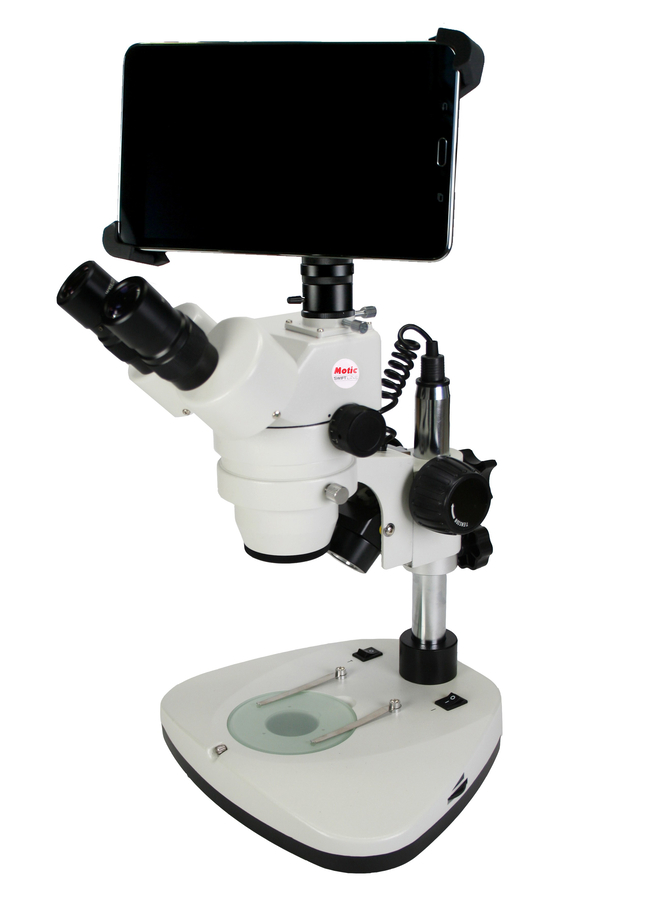

M29TZ-SM99CL-BTW1 Digital Screen Stereo Zoom Microscope

Representing the latest in educational, laboratory and research technology, the Swift™ Optical Digital Screen Stereo Zoom Microscope can be used as a conventional stereo microscope or to share live images with your students or colleagues using WiFi tablets, WiFi enabled laptops and HD-ready LCD monitors or projectors through HDMI.

Catalog Number	Head Style
S23870	Trinocular

Catalog number S23870

Price (USD)

Head Style:

Trinocular

Microscope Features:

Viewing head rotates 360°
Zoom 1X-4X
Acromatic, color-corrected lenses
Tension adjustment eliminates focus drift
Working distance: 80mm
Large dual focusing knobs with slip clutch to prevent damage to mechanism
Top and bottom LED illumination

Tablet Features:

Attached camera bracket includes built-in camera to capture still and video clips
Pre-loaded MotiConnect Apps allow for image capture, annotation and sharing
USB and WiFi Interfaces
Built-in MoticHub allows for wireless sharing

Tablet Specifications:

Screen Size: 20.3cm (8 in.)
Screen Resolution: 800 x 1280
Camera Resolution: 5.0MP
WiFi: 802.11b/g/n
Ports: CD 5V Power Input, Mini HDMI, Micro SD Card Slot, 3.5 mm Audio
HDMI Output: 1080
Battery: Rechargeable

Specifications

Head StyleTrinocular

Magnification Power10X to 40X

WarrantySwift Limited Lifetime Warranty, 1-year limited on the tablet screen

Lighting TypeLED Upper and Lower

ModelM29TZ-SM99CL-BTW1

Product TypeMicroscope

Unit SizeEA
