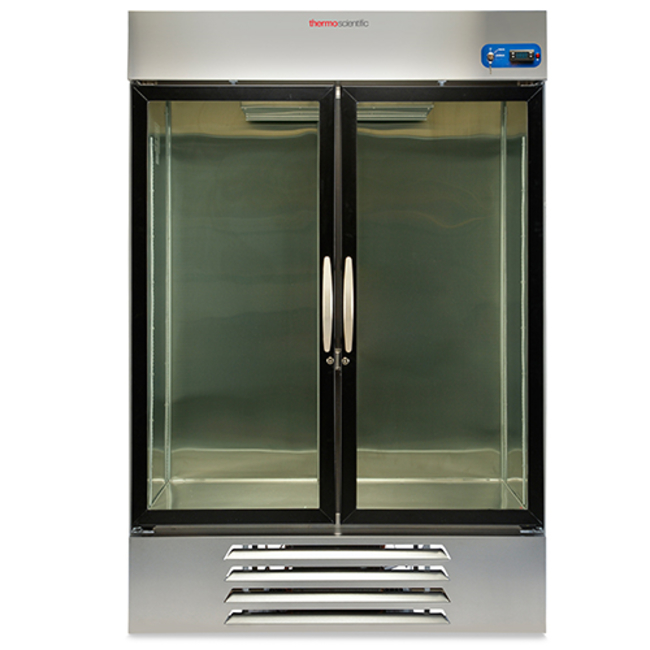

TSG Series General Purpose Laboratory Refrigerators
Actual product may vary
THERMO SCI ASHEVILLE

TSG Series General Purpose Laboratory Refrigerators

Designed for your everyday laboratory needs

Have Questions?
Change viewbuttonViewtableView
Catalog NumberCapacity (Metric)Door StyleCabinet Material
TSG49RSSA1387 LSolidGray-painted
TSG72RPGA2038 LGlassWhite-painted
Catalog number TSG49RSSA
Price (USD)
-
Capacity (Metric):
1387 L
Door Style:
Solid
Cabinet Material:
Gray-painted

Thermo Scientific™ TSG Series general-purpose laboratory refrigerators are designed with your needs in mind. The TSG Series is ideal for the demanding requirements of daily use in research, clinical, and industrial laboratories storing non-critical products such as reagents, media, proteins, and other samples requiring a 2° to 10°C controlled environment.

  • Featuring a wide range of cabinet sizes from 12 cu. ft. to 72 cu. ft.
  • Whisper-quiet operation
  • ENERGY STAR certifiedTemperature, door ajar*, and power failure (with battery back-up) alarms
  • Green, natural refrigerants
  • Adaptive defrost
  • Glass (double pane) or solid door configurations
  • Choice of white painted interior and exterior, or stainless steel interior and gray exterior
  • Digital controller
  • Rear access port
  • Remote alarm contacts
  • Keyed door lock(s)
  • LED interior lighting
  • Low heat output
  • Warranty: varies by country, please contact us for details
    *All models except TSG45RPLA and TSG45RSLA come equipped with door ajar alarm
Specifications
Ports1 Rear access port
Capacity (English)49 cu. ft.
Capacity (Metric) Shelf45 kg
Control TypeDigital Microprocessor
Door StyleSolid
Cabinet MaterialGray-painted
Certifications/CompliancecULus, ENERGYSTAR, Prop 65
DefrostAdaptive Defrost
RefrigerantR290
Access SecurityKey Lock
Shipping Weight (Metric)271 kg
DescriptionTSG Series general purpose laboratory refrigerator
Exterior FinishPainted
Dimensions (L x W x H) Exterior32x52.7x81 in.(813x1339x2057 mm)
Monitoring OptionsAlarm
Plug TypeNEMA 5-15 P
Green FeaturesEnergy efficient
Frequency60 Hz
Electrical Requirements115 V 60 Hz
InteriorStainless Steel
Amperage8.8 A
Shipping Weight (English)597 lb.
Capacity (Metric)1387 L
Dimensions (D x W x H) Interior28.5x49x61.75 in. (724x1245x1569 mm)
Voltage115 V
Capacity (English) Shelf100 lb.
Temperature (Setpoint)+5°C
Shelves8 Full
Warranty2 years parts and labor, plus 3-year compressor warranty
Temperature Range2°C to 10°C
Door MaterialStainless Steel
No. of Doors2
Unit SizeEA
